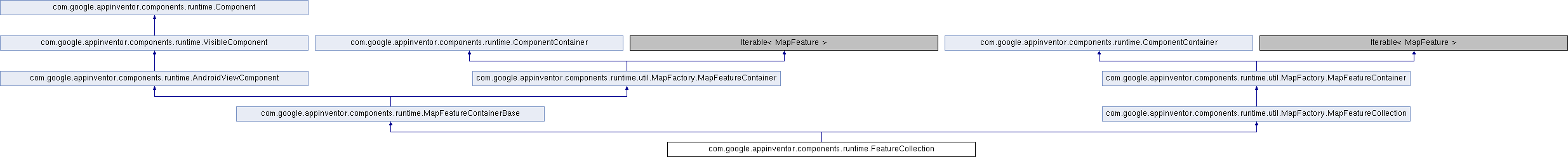

Inheritance diagram for com.google.appinventor.components.runtime.FeatureCollection:

Public Member Functions
	FeatureCollection (MapFactory.MapFeatureContainer container)

void	FeaturesFromGeoJSON (String geojson)

void	GotFeatures (String url, YailList features)

void	Source (String source)

String	Source ()

boolean	Visible ()

void	Visible (boolean visibility)

View	getView ()

Map	getMap ()

Public Member Functions inherited from com.google.appinventor.components.runtime.MapFeatureContainerBase
void	Features (YailList features)

YailList	Features ()

void	FeatureClick (MapFactory.MapFeature feature)

void	FeatureLongClick (MapFactory.MapFeature feature)

void	FeatureStartDrag (MapFactory.MapFeature feature)

void	FeatureDrag (MapFactory.MapFeature feature)

void	FeatureStopDrag (MapFactory.MapFeature feature)

void	LoadFromURL (final String url)

Object	FeatureFromDescription (YailList description)

void	LoadError (String url, int responseCode, String errorMessage)

Activity	$context ()

Form	$form ()

void	$add (AndroidViewComponent component)

void	setChildWidth (AndroidViewComponent component, int width)

void	setChildHeight (AndroidViewComponent component, int height)

void	removeFeature (MapFactory.MapFeature feature)

Iterator< MapFeature >	iterator ()

void	addFeature (MapFactory.MapFeature feature)

Public Member Functions inherited from com.google.appinventor.components.runtime.AndroidViewComponent
int	Width ()

void	Width (int width)

void	WidthPercent (int pCent)

void	setLastWidth (int width)

int	getSetWidth ()

void	setLastHeight (int height)

int	getSetHeight ()

void	CopyWidth (AndroidViewComponent sourceComponent)

int	Height ()

void	Height (int height)

void	HeightPercent (int pCent)

void	CopyHeight (AndroidViewComponent sourceComponent)

int	Column ()

void	Column (int column)

int	Row ()

void	Row (int row)

HandlesEventDispatching	getDispatchDelegate ()

Public Member Functions inherited from com.google.appinventor.components.runtime.util.MapFactory.MapFeatureContainer
void	FeatureClick (MapFeature feature)

void	FeatureLongClick (MapFeature feature)

void	FeatureStartDrag (MapFeature feature)

void	FeatureDrag (MapFeature feature)

void	FeatureStopDrag (MapFeature feature)

void	addFeature (MapFeature feature)

void	removeFeature (MapFeature feature)

Public Member Functions inherited from com.google.appinventor.components.runtime.ComponentContainer
int	Width ()

int	Height ()

Public Member Functions inherited from com.google.appinventor.components.runtime.util.MapFactory.MapFeatureCollection
YailList	Features ()

void	LoadFromURL (String url)

void	LoadError (String url, int code, String message)

Additional Inherited Members
Static Public Attributes inherited from com.google.appinventor.components.runtime.Component
static final String	ASSET_DIRECTORY = "component"

static final int	ALIGNMENT_NORMAL = 0

static final int	ALIGNMENT_CENTER = 1

static final int	ALIGNMENT_OPPOSITE = 2

static final int	ACCELEROMETER_SENSITIVITY_WEAK = 1

static final int	ACCELEROMETER_SENSITIVITY_MODERATE = 2

static final int	ACCELEROMETER_SENSITIVITY_STRONG = 3

static final int	BUTTON_SHAPE_DEFAULT = 0

static final int	BUTTON_SHAPE_ROUNDED = 1

static final int	BUTTON_SHAPE_RECT = 2

static final int	BUTTON_SHAPE_OVAL = 3

static final int	COLOR_NONE = 0x00FFFFFF

static final int	COLOR_BLACK = 0xFF000000

static final int	COLOR_BLUE = 0xFF0000FF

static final int	COLOR_CYAN = 0xFF00FFFF

static final int	COLOR_DKGRAY = 0xFF444444

static final int	COLOR_GRAY = 0xFF888888

static final int	COLOR_GREEN = 0xFF00FF00

static final int	COLOR_LTGRAY = 0xFFCCCCCC

static final int	COLOR_MAGENTA = 0xFFFF00FF

static final int	COLOR_ORANGE = 0xFFFFC800

static final int	COLOR_PINK = 0xFFFFAFAF

static final int	COLOR_RED = 0xFFFF0000

static final int	COLOR_WHITE = 0xFFFFFFFF

static final int	COLOR_YELLOW = 0xFFFFFF00

static final int	COLOR_DEFAULT = 0x00000000

static final String	DEFAULT_VALUE_COLOR_NONE = "&H00FFFFFF"

static final String	DEFAULT_VALUE_COLOR_BLACK = "&HFF000000"

static final String	DEFAULT_VALUE_COLOR_BLUE = "&HFF0000FF"

static final String	DEFAULT_VALUE_COLOR_CYAN = "&HFF00FFFF"

static final String	DEFAULT_VALUE_COLOR_DKGRAY = "&HFF444444"

static final String	DEFAULT_VALUE_COLOR_GRAY = "&HFF888888"

static final String	DEFAULT_VALUE_COLOR_GREEN = "&HFF00FF00"

static final String	DEFAULT_VALUE_COLOR_LTGRAY = "&HFFCCCCCC"

static final String	DEFAULT_VALUE_COLOR_MAGENTA = "&HFFFF00FF"

static final String	DEFAULT_VALUE_COLOR_ORANGE = "&HFFFFC800"

static final String	DEFAULT_VALUE_COLOR_PINK = "&HFFFFAFAF"

static final String	DEFAULT_VALUE_COLOR_RED = "&HFFFF0000"

static final String	DEFAULT_VALUE_COLOR_WHITE = "&HFFFFFFFF"

static final String	DEFAULT_VALUE_COLOR_YELLOW = "&HFFFFFF00"

static final String	DEFAULT_VALUE_COLOR_DEFAULT = "&H00000000"

static final float	FONT_DEFAULT_SIZE = 14

static final int	LAYOUT_ORIENTATION_HORIZONTAL = ComponentConstants.LAYOUT_ORIENTATION_HORIZONTAL

static final int	LAYOUT_ORIENTATION_VERTICAL = ComponentConstants.LAYOUT_ORIENTATION_VERTICAL

static final int	SCALING_SCALE_PROPORTIONALLY = 0

static final int	SCALING_SCALE_TO_FIT = 1

static final int	TYPEFACE_DEFAULT = 0

static final int	TYPEFACE_SANSSERIF = 1

static final int	TYPEFACE_SERIF = 2

static final int	TYPEFACE_MONOSPACE = 3

static final int	LENGTH_PREFERRED = -1

static final int	LENGTH_FILL_PARENT = -2

static final int	LENGTH_UNKNOWN = -3

static final int	LENGTH_PERCENT_TAG = -1000

static final int	TOAST_LENGTH_SHORT = 0

static final int	TOAST_LENGTH_LONG = 1

static final int	DIRECTION_NORTH = 1

static final int	DIRECTION_NORTHEAST = 2

static final int	DIRECTION_EAST = 3

static final int	DIRECTION_SOUTHEAST = 4

static final int	DIRECTION_SOUTH = -1

static final int	DIRECTION_SOUTHWEST = -2

static final int	DIRECTION_WEST = -3

static final int	DIRECTION_NORTHWEST = -4

static final int	DIRECTION_NONE = 0

static final int	DIRECTION_MIN = -4

static final int	DIRECTION_MAX = 4

static float	SLIDER_MIN_VALUE = 10

static float	SLIDER_MAX_VALUE = 50

static float	SLIDER_THUMB_VALUE = (SLIDER_MIN_VALUE + SLIDER_MAX_VALUE) / 2.0f

static final String	DEFAULT_VALUE_TEXT_TO_SPEECH_COUNTRY = ""

static final String	DEFAULT_VALUE_TEXT_TO_SPEECH_LANGUAGE = ""

Protected Member Functions inherited from com.google.appinventor.components.runtime.MapFeatureContainerBase
	MapFeatureContainerBase (ComponentContainer container)

void	processGeoJSON (final String url, final String content) throws JSONException

Protected Member Functions inherited from com.google.appinventor.components.runtime.AndroidViewComponent
	AndroidViewComponent (ComponentContainer container)

Protected Member Functions inherited from com.google.appinventor.components.runtime.VisibleComponent
	VisibleComponent ()

Protected Attributes inherited from com.google.appinventor.components.runtime.MapFeatureContainerBase
List< MapFeature >	features = new CopyOnWriteArrayList<MapFeature>()

Protected Attributes inherited from com.google.appinventor.components.runtime.AndroidViewComponent
final ComponentContainer	container

Detailed Description

A FeatureCollection groups one or more map features together. Any events that occur on a feature in the collection will also trigger the corresponding event in the collection component. FeatureCollections can be loaded from external resources to populate Maps with content. GeoJSON is the only format supported at this time.

Definition at line 38 of file FeatureCollection.java.

Constructor & Destructor Documentation

◆ FeatureCollection()

com.google.appinventor.components.runtime.FeatureCollection.FeatureCollection ( MapFactory.MapFeatureContainer container )

Definition at line 42 of file FeatureCollection.java.

Member Function Documentation

◆ FeaturesFromGeoJSON()

void com.google.appinventor.components.runtime.FeatureCollection.FeaturesFromGeoJSON ( String geojson )

Populates the feature collection from a string containing GeoJSON content. Given the size of such strings, it is recommended to load the feature collection from assets or the web using the Source(String) property.

Parameters

geojson

Definition at line 59 of file FeatureCollection.java.

◆ getMap()

Map com.google.appinventor.components.runtime.FeatureCollection.getMap ( )

Gets the map containing the feature collection.

Returns: the feature collection's map

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeatureContainer.

Definition at line 131 of file FeatureCollection.java.

◆ getView()

View com.google.appinventor.components.runtime.FeatureCollection.getView ( )

Returns the View that is displayed in the UI.

Reimplemented from com.google.appinventor.components.runtime.AndroidViewComponent.

Definition at line 124 of file FeatureCollection.java.

◆ GotFeatures()

void com.google.appinventor.components.runtime.FeatureCollection.GotFeatures	(	String	url,
		YailList	features
	)

The GotFeatures event is run when when a feature collection is successfully read from the given url{:.variable.block}. The features{:.variable.block} parameter will be a list of feature descriptions that can be converted into components using the FeatureFromDescription(YailList) method.

Parameters

url	the url corresponding to the requested url in LoadFromURL(String)
features	the list of feature descriptions read from the resource at url

Reimplemented from com.google.appinventor.components.runtime.MapFeatureContainerBase.

Definition at line 80 of file FeatureCollection.java.

◆ Source() [1/2]

String com.google.appinventor.components.runtime.FeatureCollection.Source ( )

Gets the source of the feature collection.

Returns: the last asset or url from which the feature collection was successfully read.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeatureCollection.

Definition at line 96 of file FeatureCollection.java.

◆ Source() [2/2]

void com.google.appinventor.components.runtime.FeatureCollection.Source ( String source )

Sets the source of the feature collection. This is a designer only property that is used to support loading feature collections in the web editor.

Parameters

source asset name or url from which to load the feature collection

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeatureCollection.

Definition at line 87 of file FeatureCollection.java.

◆ Visible() [1/2]

boolean com.google.appinventor.components.runtime.FeatureCollection.Visible ( )

Returns true iff the component is visible.

Returns: true iff the component is visible

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeatureCollection.

Definition at line 106 of file FeatureCollection.java.

◆ Visible() [2/2]

void com.google.appinventor.components.runtime.FeatureCollection.Visible ( boolean visibility )

Specifies whether the type% should be visible on the screen. Value is true{:.logic.block} if the type% is showing and false{:.logic.block} if hidden.

Parameters

visibility desired state

Reimplemented from com.google.appinventor.components.runtime.AndroidViewComponent.

Definition at line 119 of file FeatureCollection.java.

The documentation for this class was generated from the following file:

C:/Users/Ulli/appinventor-sources/appinventor/components/src/com/google/appinventor/components/runtime/FeatureCollection.java
