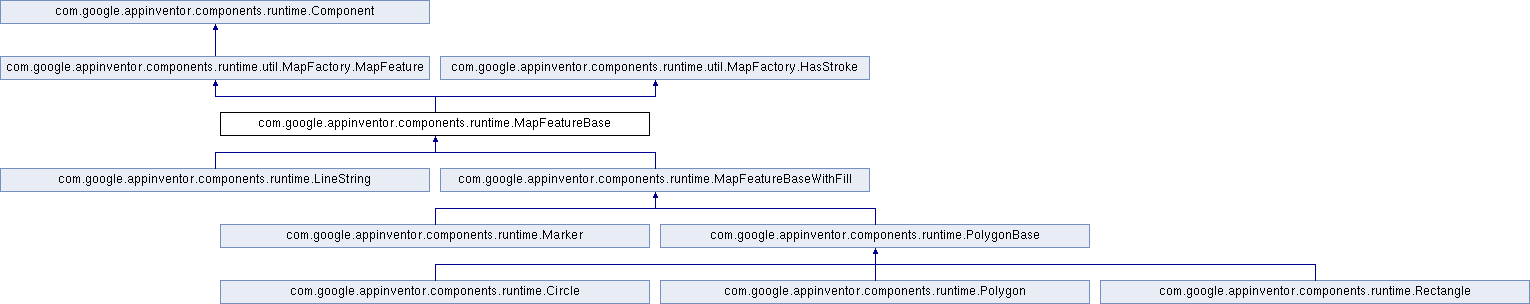

Inheritance diagram for com.google.appinventor.components.runtime.MapFeatureBase:

Public Member Functions
void	setMap (MapFactory.MapFeatureContainer container)

void	removeFromMap ()

void	Visible (boolean visibility)

boolean	Visible ()

void	StrokeColor (int argb)

int	StrokeColor ()

void	StrokeOpacity (float opacity)

float	StrokeOpacity ()

void	StrokeWidth (int width)

int	StrokeWidth ()

void	Draggable (boolean draggable)

boolean	Draggable ()

void	Title (String title)

String	Title ()

void	Description (String description)

String	Description ()

void	EnableInfobox (boolean enable)

boolean	EnableInfobox ()

void	ShowInfobox ()

void	HideInfobox ()

YailList	Centroid ()

double	DistanceToPoint (double latitude, double longitude, boolean centroid)

double	DistanceToFeature (MapFeature mapFeature, final boolean centroids)

void	Click ()

void	LongClick ()

void	StartDrag ()

void	Drag ()

void	StopDrag ()

HandlesEventDispatching	getDispatchDelegate ()

final synchronized GeoPoint	getCentroid ()

final synchronized Geometry	getGeometry ()

Public Member Functions inherited from com.google.appinventor.components.runtime.util.MapFactory.MapFeature
String	Type ()

< T > T	accept (MapFeatureVisitor< T > visitor, Object... arguments)

void	setMap (MapFeatureContainer map)

Protected Member Functions
	MapFeatureBase (MapFeatureContainer container, MapFeatureVisitor< Double > distanceComputation)

final synchronized void	clearGeometry ()

abstract Geometry	computeGeometry ()

Protected Attributes
MapFeatureContainer	container = null

Map	map = null

Additional Inherited Members
Static Public Attributes inherited from com.google.appinventor.components.runtime.Component
static final String	ASSET_DIRECTORY = "component"

static final int	ALIGNMENT_NORMAL = 0

static final int	ALIGNMENT_CENTER = 1

static final int	ALIGNMENT_OPPOSITE = 2

static final int	ACCELEROMETER_SENSITIVITY_WEAK = 1

static final int	ACCELEROMETER_SENSITIVITY_MODERATE = 2

static final int	ACCELEROMETER_SENSITIVITY_STRONG = 3

static final int	BUTTON_SHAPE_DEFAULT = 0

static final int	BUTTON_SHAPE_ROUNDED = 1

static final int	BUTTON_SHAPE_RECT = 2

static final int	BUTTON_SHAPE_OVAL = 3

static final int	COLOR_NONE = 0x00FFFFFF

static final int	COLOR_BLACK = 0xFF000000

static final int	COLOR_BLUE = 0xFF0000FF

static final int	COLOR_CYAN = 0xFF00FFFF

static final int	COLOR_DKGRAY = 0xFF444444

static final int	COLOR_GRAY = 0xFF888888

static final int	COLOR_GREEN = 0xFF00FF00

static final int	COLOR_LTGRAY = 0xFFCCCCCC

static final int	COLOR_MAGENTA = 0xFFFF00FF

static final int	COLOR_ORANGE = 0xFFFFC800

static final int	COLOR_PINK = 0xFFFFAFAF

static final int	COLOR_RED = 0xFFFF0000

static final int	COLOR_WHITE = 0xFFFFFFFF

static final int	COLOR_YELLOW = 0xFFFFFF00

static final int	COLOR_DEFAULT = 0x00000000

static final String	DEFAULT_VALUE_COLOR_NONE = "&H00FFFFFF"

static final String	DEFAULT_VALUE_COLOR_BLACK = "&HFF000000"

static final String	DEFAULT_VALUE_COLOR_BLUE = "&HFF0000FF"

static final String	DEFAULT_VALUE_COLOR_CYAN = "&HFF00FFFF"

static final String	DEFAULT_VALUE_COLOR_DKGRAY = "&HFF444444"

static final String	DEFAULT_VALUE_COLOR_GRAY = "&HFF888888"

static final String	DEFAULT_VALUE_COLOR_GREEN = "&HFF00FF00"

static final String	DEFAULT_VALUE_COLOR_LTGRAY = "&HFFCCCCCC"

static final String	DEFAULT_VALUE_COLOR_MAGENTA = "&HFFFF00FF"

static final String	DEFAULT_VALUE_COLOR_ORANGE = "&HFFFFC800"

static final String	DEFAULT_VALUE_COLOR_PINK = "&HFFFFAFAF"

static final String	DEFAULT_VALUE_COLOR_RED = "&HFFFF0000"

static final String	DEFAULT_VALUE_COLOR_WHITE = "&HFFFFFFFF"

static final String	DEFAULT_VALUE_COLOR_YELLOW = "&HFFFFFF00"

static final String	DEFAULT_VALUE_COLOR_DEFAULT = "&H00000000"

static final float	FONT_DEFAULT_SIZE = 14

static final int	LAYOUT_ORIENTATION_HORIZONTAL = ComponentConstants.LAYOUT_ORIENTATION_HORIZONTAL

static final int	LAYOUT_ORIENTATION_VERTICAL = ComponentConstants.LAYOUT_ORIENTATION_VERTICAL

static final int	SCALING_SCALE_PROPORTIONALLY = 0

static final int	SCALING_SCALE_TO_FIT = 1

static final int	TYPEFACE_DEFAULT = 0

static final int	TYPEFACE_SANSSERIF = 1

static final int	TYPEFACE_SERIF = 2

static final int	TYPEFACE_MONOSPACE = 3

static final int	LENGTH_PREFERRED = -1

static final int	LENGTH_FILL_PARENT = -2

static final int	LENGTH_UNKNOWN = -3

static final int	LENGTH_PERCENT_TAG = -1000

static final int	TOAST_LENGTH_SHORT = 0

static final int	TOAST_LENGTH_LONG = 1

static final int	DIRECTION_NORTH = 1

static final int	DIRECTION_NORTHEAST = 2

static final int	DIRECTION_EAST = 3

static final int	DIRECTION_SOUTHEAST = 4

static final int	DIRECTION_SOUTH = -1

static final int	DIRECTION_SOUTHWEST = -2

static final int	DIRECTION_WEST = -3

static final int	DIRECTION_NORTHWEST = -4

static final int	DIRECTION_NONE = 0

static final int	DIRECTION_MIN = -4

static final int	DIRECTION_MAX = 4

static float	SLIDER_MIN_VALUE = 10

static float	SLIDER_MAX_VALUE = 50

static float	SLIDER_THUMB_VALUE = (SLIDER_MIN_VALUE + SLIDER_MAX_VALUE) / 2.0f

static final String	DEFAULT_VALUE_TEXT_TO_SPEECH_COUNTRY = ""

static final String	DEFAULT_VALUE_TEXT_TO_SPEECH_LANGUAGE = ""

Detailed Description

Definition at line 32 of file MapFeatureBase.java.

Constructor & Destructor Documentation

◆ MapFeatureBase()

com.google.appinventor.components.runtime.MapFeatureBase.MapFeatureBase	(	MapFeatureContainer	container,
		MapFeatureVisitor< Double >	distanceComputation
	)

protected

Definition at line 95 of file MapFeatureBase.java.

Member Function Documentation

◆ Centroid()

YailList com.google.appinventor.components.runtime.MapFeatureBase.Centroid ( )

Reimplemented in com.google.appinventor.components.runtime.Polygon.

Definition at line 308 of file MapFeatureBase.java.

◆ clearGeometry()

final synchronized void com.google.appinventor.components.runtime.MapFeatureBase.clearGeometry ( )

protected

Definition at line 430 of file MapFeatureBase.java.

◆ Click()

void com.google.appinventor.components.runtime.MapFeatureBase.Click ( )

The Click event runs when the user taps on the type%.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 358 of file MapFeatureBase.java.

◆ computeGeometry()

abstract Geometry com.google.appinventor.components.runtime.MapFeatureBase.computeGeometry ( )

abstractprotected

Reimplemented in com.google.appinventor.components.runtime.Marker, com.google.appinventor.components.runtime.Polygon, com.google.appinventor.components.runtime.Rectangle, com.google.appinventor.components.runtime.Circle, and com.google.appinventor.components.runtime.LineString.

◆ Description() [1/2]

String com.google.appinventor.components.runtime.MapFeatureBase.Description ( )

Sets or gets the description displayed in the info window. The info window appears when the user taps on the type%.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 263 of file MapFeatureBase.java.

◆ Description() [2/2]

void com.google.appinventor.components.runtime.MapFeatureBase.Description ( String description )

Sets the long text description in the infobox.

Parameters

description the description of the feature as shown in the infobox.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 250 of file MapFeatureBase.java.

◆ DistanceToFeature()

double com.google.appinventor.components.runtime.MapFeatureBase.DistanceToFeature	(	MapFeature	mapFeature,
		final boolean	centroids
	)

Computes the distance between the type% and the given mapFeature. If centroids is true{:.logic.block}, the computation is done between the centroids of the two features. Otherwise, the distance will be computed between the two features based on the closest points. Further, when centroids is false{:.logic.block}, this method will return 0 if the type% intersects or contains the mapFeature. If an error occurs, this method will return -1.

Parameters

mapFeature	The feature to compute the distance to
centroids	A flag to indicate whether the distance should be computed from the centroids of the two features (true) or from the edges of the two features (false).

Returns: The distance in meters between the two features or -1 if there is an error.

Definition at line 347 of file MapFeatureBase.java.

◆ DistanceToPoint()

double com.google.appinventor.components.runtime.MapFeatureBase.DistanceToPoint	(	double	latitude,
		double	longitude,
		boolean	centroid
	)

Computes the distance between the type% and the given latitude and longitude. If centroids is true{:.logic.block}, the distance is computed from the center of the type% to the given point. Otherwise, the distance is computed from the closest point on the type% to the given point. Further, this method will return 0 if centroids is false{:.logic.block} and the point is in the type%. If an error occurs, -1 will be returned.

Parameters

latitude	The latitude of the point to compute the distance to
longitude	The longitude of the point to compute the distance to
centroid	A flag to indicate whether the distance should be computed from the centroid of the feature (true) or from the edge (false).

Returns: The distance from the feature to the (latitude, longitude) point, or -1 if there was an error.

Reimplemented in com.google.appinventor.components.runtime.Marker.

Definition at line 329 of file MapFeatureBase.java.

◆ Drag()

void com.google.appinventor.components.runtime.MapFeatureBase.Drag ( )

The Drag event runs in response to position updates of the type% as the user drags it.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 393 of file MapFeatureBase.java.

◆ Draggable() [1/2]

boolean com.google.appinventor.components.runtime.MapFeatureBase.Draggable ( )

Sets or gets whether or not the user can drag a map feature. This feature is accessed by long-pressing and then dragging the type% to a new location.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 223 of file MapFeatureBase.java.

◆ Draggable() [2/2]

void com.google.appinventor.components.runtime.MapFeatureBase.Draggable ( boolean draggable )

Sets whether the map feature is draggable on the map, assuming that the map implementation supports dragging features.

Parameters

draggable true if the feature should be draggable by the app user, otherwise false.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 211 of file MapFeatureBase.java.

◆ EnableInfobox() [1/2]

boolean com.google.appinventor.components.runtime.MapFeatureBase.EnableInfobox ( )

Enables or disables the infobox window display when the user taps the type%.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 282 of file MapFeatureBase.java.

◆ EnableInfobox() [2/2]

void com.google.appinventor.components.runtime.MapFeatureBase.EnableInfobox ( boolean enable )

Sets whether the infobox should automatically show when the app user taps the feature

Parameters

enable true if the infobox should automatically show when the feature is tapped by the app user, otherwise false.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 271 of file MapFeatureBase.java.

◆ getCentroid()

final synchronized GeoPoint com.google.appinventor.components.runtime.MapFeatureBase.getCentroid ( )

Gets the centroid of the feature.

Returns: the feature's centroid.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 414 of file MapFeatureBase.java.

◆ getDispatchDelegate()

HandlesEventDispatching com.google.appinventor.components.runtime.MapFeatureBase.getDispatchDelegate ( )

Returns the dispatch delegate that is responsible for dispatching events for this component.

Implements com.google.appinventor.components.runtime.Component.

Definition at line 409 of file MapFeatureBase.java.

◆ getGeometry()

final synchronized Geometry com.google.appinventor.components.runtime.MapFeatureBase.getGeometry ( )

Gets the geometry of the feature, used for calculating distance and bearing measures.

Returns: the feature's geometry

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 422 of file MapFeatureBase.java.

◆ HideInfobox()

void com.google.appinventor.components.runtime.MapFeatureBase.HideInfobox ( )

Hides the type%'s info box if it is visible. Otherwise, no action is taken.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 303 of file MapFeatureBase.java.

◆ LongClick()

void com.google.appinventor.components.runtime.MapFeatureBase.LongClick ( )

The LongClick event runs when the user presses and holds the type% and then releases it. This event will only trigger if Draggable() is false{:.logic.block} because it uses the same gesture as StartDrag().

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 371 of file MapFeatureBase.java.

◆ removeFromMap()

void com.google.appinventor.components.runtime.MapFeatureBase.removeFromMap ( )

Removes the feature from its current Map.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 115 of file MapFeatureBase.java.

◆ setMap()

void com.google.appinventor.components.runtime.MapFeatureBase.setMap ( MapFactory.MapFeatureContainer container )

Definition at line 110 of file MapFeatureBase.java.

◆ ShowInfobox()

void com.google.appinventor.components.runtime.MapFeatureBase.ShowInfobox ( )

Shows the info box for the type% if it is not visible. Otherwise, this method has no effect. This method can be used to show the info box even if EnableInfobox() is false.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 293 of file MapFeatureBase.java.

◆ StartDrag()

void com.google.appinventor.components.runtime.MapFeatureBase.StartDrag ( )

The StartDrag event runs when the user presses and holds the type% and then proceeds to move their finger on the screen. It will be followed by the Drag() and StopDrag() events.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 383 of file MapFeatureBase.java.

◆ StopDrag()

void com.google.appinventor.components.runtime.MapFeatureBase.StopDrag ( )

The StopDrag event runs when the user releases the type% at the end of a drag.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 403 of file MapFeatureBase.java.

◆ StrokeColor() [1/2]

int com.google.appinventor.components.runtime.MapFeatureBase.StrokeColor ( )

Sets or gets the color used to outline the type%.

Implements com.google.appinventor.components.runtime.util.MapFactory.HasStroke.

Definition at line 163 of file MapFeatureBase.java.

◆ StrokeColor() [2/2]

void com.google.appinventor.components.runtime.MapFeatureBase.StrokeColor ( int argb )

Sets the color used to paint the outline of the feature

Parameters

argb	the outline paint color

Implements com.google.appinventor.components.runtime.util.MapFactory.HasStroke.

Reimplemented in com.google.appinventor.components.runtime.Marker.

Definition at line 151 of file MapFeatureBase.java.

◆ StrokeOpacity() [1/2]

float com.google.appinventor.components.runtime.MapFeatureBase.StrokeOpacity ( )

Sets or gets the opacity of the outline of the type%. A value of 0.0 will be invisible and a value of 1.0 will be opaque.

Implements com.google.appinventor.components.runtime.util.MapFactory.HasStroke.

Definition at line 184 of file MapFeatureBase.java.

◆ StrokeOpacity() [2/2]

void com.google.appinventor.components.runtime.MapFeatureBase.StrokeOpacity ( float opacity )

Sets the opacity of the outline of the feature

Parameters

opacity the stroke opacity

Implements com.google.appinventor.components.runtime.util.MapFactory.HasStroke.

Definition at line 171 of file MapFeatureBase.java.

◆ StrokeWidth() [1/2]

int com.google.appinventor.components.runtime.MapFeatureBase.StrokeWidth ( )

Sets or gets the width of the stroke used to outline the type%.

Implements com.google.appinventor.components.runtime.util.MapFactory.HasStroke.

Definition at line 203 of file MapFeatureBase.java.

◆ StrokeWidth() [2/2]

void com.google.appinventor.components.runtime.MapFeatureBase.StrokeWidth ( int width )

Sets the width of the outline of the feature

Parameters

width the outline width

Implements com.google.appinventor.components.runtime.util.MapFactory.HasStroke.

Reimplemented in com.google.appinventor.components.runtime.LineString.

Definition at line 192 of file MapFeatureBase.java.

◆ Title() [1/2]

String com.google.appinventor.components.runtime.MapFeatureBase.Title ( )

Sets or gets the title displayed in the info window that appears when the user clicks on the map feature.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 243 of file MapFeatureBase.java.

◆ Title() [2/2]

void com.google.appinventor.components.runtime.MapFeatureBase.Title ( String title )

Sets the title of the feature's infobox.

Parameters

title the title of the feature's infobox

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 230 of file MapFeatureBase.java.

◆ Visible() [1/2]

boolean com.google.appinventor.components.runtime.MapFeatureBase.Visible ( )

Specifies whether the type% should be visible on the screen. Value is true{:.logic.block} if the type% is showing and false{:.logic.block} if hidden.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 143 of file MapFeatureBase.java.

◆ Visible() [2/2]

void com.google.appinventor.components.runtime.MapFeatureBase.Visible ( boolean visible )

Sets whether the component should be visible on the screen.

Parameters

visible true if the component should be visible, otherwise false.

Implements com.google.appinventor.components.runtime.util.MapFactory.MapFeature.

Definition at line 123 of file MapFeatureBase.java.

Member Data Documentation

◆ container

MapFeatureContainer com.google.appinventor.components.runtime.MapFeatureBase.container = null

protected

Definition at line 33 of file MapFeatureBase.java.

◆ map

Map com.google.appinventor.components.runtime.MapFeatureBase.map = null

protected

Definition at line 34 of file MapFeatureBase.java.

The documentation for this class was generated from the following file:

C:/Users/Ulli/appinventor-sources/appinventor/components/src/com/google/appinventor/components/runtime/MapFeatureBase.java

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MapFeatureBase()

Member Function Documentation

◆ Centroid()

◆ clearGeometry()

◆ Click()

◆ computeGeometry()

◆ Description() [1/2]

◆ Description() [2/2]

◆ DistanceToFeature()

◆ DistanceToPoint()

◆ Drag()

◆ Draggable() [1/2]

◆ Draggable() [2/2]

◆ EnableInfobox() [1/2]

◆ EnableInfobox() [2/2]

◆ getCentroid()

◆ getDispatchDelegate()

◆ getGeometry()

◆ HideInfobox()

◆ LongClick()

◆ removeFromMap()

◆ setMap()

◆ ShowInfobox()

◆ StartDrag()

◆ StopDrag()

◆ StrokeColor() [1/2]

◆ StrokeColor() [2/2]

◆ StrokeOpacity() [1/2]

◆ StrokeOpacity() [2/2]

◆ StrokeWidth() [1/2]

◆ StrokeWidth() [2/2]

◆ Title() [1/2]

◆ Title() [2/2]

◆ Visible() [1/2]

◆ Visible() [2/2]

Member Data Documentation

◆ container

◆ map
