AI2 Component  (Version nb184)
com.google.appinventor.components.runtime.SpeechRecognizer Class Reference

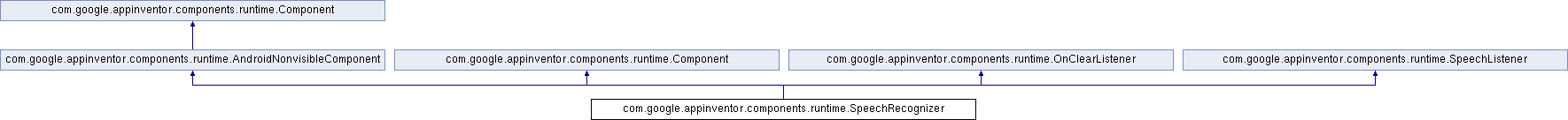

Inheritance diagram for com.google.appinventor.components.runtime.SpeechRecognizer:
com.google.appinventor.components.runtime.AndroidNonvisibleComponent com.google.appinventor.components.runtime.Component com.google.appinventor.components.runtime.OnClearListener com.google.appinventor.components.runtime.SpeechListener com.google.appinventor.components.runtime.Component

Public Member Functions

 SpeechRecognizer (ComponentContainer container)

String Result ()

void GetText ()

void Stop ()

void BeforeGettingText ()

void AfterGettingText (String result, boolean partial)

void onPartialResult (String text)

void onResult (String text)

void onError (int errorNumber)

void onClear ()

boolean UseLegacy ()

void UseLegacy (boolean useLegacy)

- Public Member Functions inherited from com.google.appinventor.components.runtime.AndroidNonvisibleComponent
HandlesEventDispatching getDispatchDelegate ()


Additional Inherited Members

- Static Public Attributes inherited from com.google.appinventor.components.runtime.Component
static final String ASSET_DIRECTORY = "component"

static final int ALIGNMENT_NORMAL = 0

static final int ALIGNMENT_CENTER = 1

static final int ALIGNMENT_OPPOSITE = 2

static final int ACCELEROMETER_SENSITIVITY_WEAK = 1

static final int ACCELEROMETER_SENSITIVITY_MODERATE = 2

static final int ACCELEROMETER_SENSITIVITY_STRONG = 3

static final int BUTTON_SHAPE_DEFAULT = 0

static final int BUTTON_SHAPE_ROUNDED = 1

static final int BUTTON_SHAPE_RECT = 2

static final int BUTTON_SHAPE_OVAL = 3

static final int COLOR_NONE = 0x00FFFFFF

static final int COLOR_BLACK = 0xFF000000

static final int COLOR_BLUE = 0xFF0000FF

static final int COLOR_CYAN = 0xFF00FFFF

static final int COLOR_DKGRAY = 0xFF444444

static final int COLOR_GRAY = 0xFF888888

static final int COLOR_GREEN = 0xFF00FF00

static final int COLOR_LTGRAY = 0xFFCCCCCC

static final int COLOR_MAGENTA = 0xFFFF00FF

static final int COLOR_ORANGE = 0xFFFFC800

static final int COLOR_PINK = 0xFFFFAFAF

static final int COLOR_RED = 0xFFFF0000

static final int COLOR_WHITE = 0xFFFFFFFF

static final int COLOR_YELLOW = 0xFFFFFF00

static final int COLOR_DEFAULT = 0x00000000

static final String DEFAULT_VALUE_COLOR_NONE = "&H00FFFFFF"

static final String DEFAULT_VALUE_COLOR_BLACK = "&HFF000000"

static final String DEFAULT_VALUE_COLOR_BLUE = "&HFF0000FF"

static final String DEFAULT_VALUE_COLOR_CYAN = "&HFF00FFFF"

static final String DEFAULT_VALUE_COLOR_DKGRAY = "&HFF444444"

static final String DEFAULT_VALUE_COLOR_GRAY = "&HFF888888"

static final String DEFAULT_VALUE_COLOR_GREEN = "&HFF00FF00"

static final String DEFAULT_VALUE_COLOR_LTGRAY = "&HFFCCCCCC"

static final String DEFAULT_VALUE_COLOR_MAGENTA = "&HFFFF00FF"

static final String DEFAULT_VALUE_COLOR_ORANGE = "&HFFFFC800"

static final String DEFAULT_VALUE_COLOR_PINK = "&HFFFFAFAF"

static final String DEFAULT_VALUE_COLOR_RED = "&HFFFF0000"

static final String DEFAULT_VALUE_COLOR_WHITE = "&HFFFFFFFF"

static final String DEFAULT_VALUE_COLOR_YELLOW = "&HFFFFFF00"

static final String DEFAULT_VALUE_COLOR_DEFAULT = "&H00000000"

static final float FONT_DEFAULT_SIZE = 14

static final int LAYOUT_ORIENTATION_HORIZONTAL = ComponentConstants.LAYOUT_ORIENTATION_HORIZONTAL

static final int LAYOUT_ORIENTATION_VERTICAL = ComponentConstants.LAYOUT_ORIENTATION_VERTICAL

static final int SCALING_SCALE_PROPORTIONALLY = 0

static final int SCALING_SCALE_TO_FIT = 1

static final int TYPEFACE_DEFAULT = 0

static final int TYPEFACE_SANSSERIF = 1

static final int TYPEFACE_SERIF = 2

static final int TYPEFACE_MONOSPACE = 3

static final int LENGTH_PREFERRED = -1

static final int LENGTH_FILL_PARENT = -2

static final int LENGTH_UNKNOWN = -3

static final int LENGTH_PERCENT_TAG = -1000

static final int TOAST_LENGTH_SHORT = 0

static final int TOAST_LENGTH_LONG = 1

static final int DIRECTION_NORTH = 1

static final int DIRECTION_NORTHEAST = 2

static final int DIRECTION_EAST = 3

static final int DIRECTION_SOUTHEAST = 4

static final int DIRECTION_SOUTH = -1

static final int DIRECTION_SOUTHWEST = -2

static final int DIRECTION_WEST = -3

static final int DIRECTION_NORTHWEST = -4

static final int DIRECTION_NONE = 0

static final int DIRECTION_MIN = -4

static final int DIRECTION_MAX = 4

static float SLIDER_MIN_VALUE = 10

static float SLIDER_MAX_VALUE = 50

static float SLIDER_THUMB_VALUE = (SLIDER_MIN_VALUE + SLIDER_MAX_VALUE) / 2.0f

static final String DEFAULT_VALUE_TEXT_TO_SPEECH_COUNTRY = ""

static final String DEFAULT_VALUE_TEXT_TO_SPEECH_LANGUAGE = ""

- Protected Member Functions inherited from com.google.appinventor.components.runtime.AndroidNonvisibleComponent
 AndroidNonvisibleComponent (Form form)

- Protected Attributes inherited from com.google.appinventor.components.runtime.AndroidNonvisibleComponent
final Form form


Detailed Description

SpeechRecognizer icon

Use a SpeechRecognizer component to listen to the user speaking and convert the spoken sound into text using the device's speech recognition feature.

@internaldoc Component for using the built in VoiceRecognizer to convert speech to text. For more details, please see: http://developer.android.com/reference/android/speech/RecognizerIntent.html

Definition at line 47 of file SpeechRecognizer.java.

Constructor & Destructor Documentation

◆ SpeechRecognizer()

com.google.appinventor.components.runtime.SpeechRecognizer.SpeechRecognizer ( ComponentContainer  container)

Creates a SpeechRecognizer component.

Parameters
containercontainer, component will be placed in

Definition at line 63 of file SpeechRecognizer.java.

Member Function Documentation

◆ AfterGettingText()

void com.google.appinventor.components.runtime.SpeechRecognizer.AfterGettingText ( String  result,
boolean  partial
)

Simple event to raise after the SpeechRecognizer has recognized speech. If UseLegacy(boolean) is true{:.logic.block}, then this event will only happen once at the very end of the recognition. If UseLegacy(boolean) is false{:.logic.block}, then this event will run multiple times as the SpeechRecognizer incrementally recognizes speech. In this case, partial will be true{:.logic.block} until the recognized speech has been finalized (e.g., the user has stopped speaking), in which case partial will be false{:.logic.block}.

Definition at line 148 of file SpeechRecognizer.java.

◆ BeforeGettingText()

void com.google.appinventor.components.runtime.SpeechRecognizer.BeforeGettingText ( )

Simple event to raise when the SpeechRecognizer is invoked but before its activity is started.

Definition at line 134 of file SpeechRecognizer.java.

◆ GetText()

void com.google.appinventor.components.runtime.SpeechRecognizer.GetText ( )

Asks the user to speak, and converts the speech to text. Signals the AfterGettingText(String, boolean) event when the result is available.

Definition at line 88 of file SpeechRecognizer.java.

◆ onClear()

void com.google.appinventor.components.runtime.SpeechRecognizer.onClear ( )

◆ onError()

void com.google.appinventor.components.runtime.SpeechRecognizer.onError ( int  errorNumber)

Method from SpeechListener interface.

Implements com.google.appinventor.components.runtime.SpeechListener.

Definition at line 174 of file SpeechRecognizer.java.

◆ onPartialResult()

void com.google.appinventor.components.runtime.SpeechRecognizer.onPartialResult ( String  text)

Method from SpeechListener interface.

Implements com.google.appinventor.components.runtime.SpeechListener.

Definition at line 156 of file SpeechRecognizer.java.

◆ onResult()

void com.google.appinventor.components.runtime.SpeechRecognizer.onResult ( String  text)

Method from SpeechListener interface.

Implements com.google.appinventor.components.runtime.SpeechListener.

Definition at line 165 of file SpeechRecognizer.java.

◆ Result()

String com.google.appinventor.components.runtime.SpeechRecognizer.Result ( )

Returns the last text produced by the recognizer.

Definition at line 79 of file SpeechRecognizer.java.

◆ Stop()

void com.google.appinventor.components.runtime.SpeechRecognizer.Stop ( )

Function used to forcefully stop listening speech in cases where SpeechRecognizer cannot stop automatically. This function works only when the UseLegacy(boolean) property is set to false{:.logic.block}.

Definition at line 123 of file SpeechRecognizer.java.

◆ UseLegacy() [1/2]

boolean com.google.appinventor.components.runtime.SpeechRecognizer.UseLegacy ( )

Definition at line 189 of file SpeechRecognizer.java.

◆ UseLegacy() [2/2]

void com.google.appinventor.components.runtime.SpeechRecognizer.UseLegacy ( boolean  useLegacy)

If true, a separate dialog is used to recognize speech (the default). If false, speech is recognized in the background and updates are received as it recognizes words. AfterGettingText(String, boolean) may get several calls with partial set to true{:.logic.block}. Once sufficient time has elapsed since the last utterance, or StopListening is called, the last string will be returned with partial set to false{:.logic.block} to indicate that it is the final recognized string and no more data will be provided until recognition is again started. See AfterGettingText(String, boolean) for more details on partial speech recognition.

Parameters
useLegacy

Definition at line 208 of file SpeechRecognizer.java.


The documentation for this class was generated from the following file:
