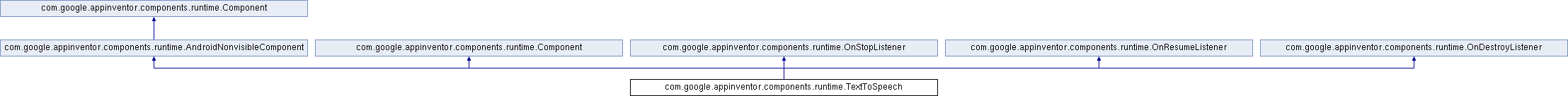

Inheritance diagram for com.google.appinventor.components.runtime.TextToSpeech:

Public Member Functions
	TextToSpeech (ComponentContainer container)

boolean	Result ()

void	Language (String language)

void	Pitch (float pitch)

float	Pitch ()

void	SpeechRate (float speechRate)

float	SpeechRate ()

String	Language ()

void	Country (String country)

String	Country ()

YailList	AvailableLanguages ()

YailList	AvailableCountries ()

void	prepareLanguageAndCountryProperties ()

void	Speak (final String message)

void	BeforeSpeaking ()

void	AfterSpeaking (boolean result)

void	onStop ()

void	onResume ()

void	onDestroy ()

Public Member Functions inherited from com.google.appinventor.components.runtime.AndroidNonvisibleComponent
HandlesEventDispatching	getDispatchDelegate ()

Additional Inherited Members
Static Public Attributes inherited from com.google.appinventor.components.runtime.Component
static final String	ASSET_DIRECTORY = "component"

static final int	ALIGNMENT_NORMAL = 0

static final int	ALIGNMENT_CENTER = 1

static final int	ALIGNMENT_OPPOSITE = 2

static final int	ACCELEROMETER_SENSITIVITY_WEAK = 1

static final int	ACCELEROMETER_SENSITIVITY_MODERATE = 2

static final int	ACCELEROMETER_SENSITIVITY_STRONG = 3

static final int	BUTTON_SHAPE_DEFAULT = 0

static final int	BUTTON_SHAPE_ROUNDED = 1

static final int	BUTTON_SHAPE_RECT = 2

static final int	BUTTON_SHAPE_OVAL = 3

static final int	COLOR_NONE = 0x00FFFFFF

static final int	COLOR_BLACK = 0xFF000000

static final int	COLOR_BLUE = 0xFF0000FF

static final int	COLOR_CYAN = 0xFF00FFFF

static final int	COLOR_DKGRAY = 0xFF444444

static final int	COLOR_GRAY = 0xFF888888

static final int	COLOR_GREEN = 0xFF00FF00

static final int	COLOR_LTGRAY = 0xFFCCCCCC

static final int	COLOR_MAGENTA = 0xFFFF00FF

static final int	COLOR_ORANGE = 0xFFFFC800

static final int	COLOR_PINK = 0xFFFFAFAF

static final int	COLOR_RED = 0xFFFF0000

static final int	COLOR_WHITE = 0xFFFFFFFF

static final int	COLOR_YELLOW = 0xFFFFFF00

static final int	COLOR_DEFAULT = 0x00000000

static final String	DEFAULT_VALUE_COLOR_NONE = "&H00FFFFFF"

static final String	DEFAULT_VALUE_COLOR_BLACK = "&HFF000000"

static final String	DEFAULT_VALUE_COLOR_BLUE = "&HFF0000FF"

static final String	DEFAULT_VALUE_COLOR_CYAN = "&HFF00FFFF"

static final String	DEFAULT_VALUE_COLOR_DKGRAY = "&HFF444444"

static final String	DEFAULT_VALUE_COLOR_GRAY = "&HFF888888"

static final String	DEFAULT_VALUE_COLOR_GREEN = "&HFF00FF00"

static final String	DEFAULT_VALUE_COLOR_LTGRAY = "&HFFCCCCCC"

static final String	DEFAULT_VALUE_COLOR_MAGENTA = "&HFFFF00FF"

static final String	DEFAULT_VALUE_COLOR_ORANGE = "&HFFFFC800"

static final String	DEFAULT_VALUE_COLOR_PINK = "&HFFFFAFAF"

static final String	DEFAULT_VALUE_COLOR_RED = "&HFFFF0000"

static final String	DEFAULT_VALUE_COLOR_WHITE = "&HFFFFFFFF"

static final String	DEFAULT_VALUE_COLOR_YELLOW = "&HFFFFFF00"

static final String	DEFAULT_VALUE_COLOR_DEFAULT = "&H00000000"

static final float	FONT_DEFAULT_SIZE = 14

static final int	LAYOUT_ORIENTATION_HORIZONTAL = ComponentConstants.LAYOUT_ORIENTATION_HORIZONTAL

static final int	LAYOUT_ORIENTATION_VERTICAL = ComponentConstants.LAYOUT_ORIENTATION_VERTICAL

static final int	SCALING_SCALE_PROPORTIONALLY = 0

static final int	SCALING_SCALE_TO_FIT = 1

static final int	TYPEFACE_DEFAULT = 0

static final int	TYPEFACE_SANSSERIF = 1

static final int	TYPEFACE_SERIF = 2

static final int	TYPEFACE_MONOSPACE = 3

static final int	LENGTH_PREFERRED = -1

static final int	LENGTH_FILL_PARENT = -2

static final int	LENGTH_UNKNOWN = -3

static final int	LENGTH_PERCENT_TAG = -1000

static final int	TOAST_LENGTH_SHORT = 0

static final int	TOAST_LENGTH_LONG = 1

static final int	DIRECTION_NORTH = 1

static final int	DIRECTION_NORTHEAST = 2

static final int	DIRECTION_EAST = 3

static final int	DIRECTION_SOUTHEAST = 4

static final int	DIRECTION_SOUTH = -1

static final int	DIRECTION_SOUTHWEST = -2

static final int	DIRECTION_WEST = -3

static final int	DIRECTION_NORTHWEST = -4

static final int	DIRECTION_NONE = 0

static final int	DIRECTION_MIN = -4

static final int	DIRECTION_MAX = 4

static float	SLIDER_MIN_VALUE = 10

static float	SLIDER_MAX_VALUE = 50

static float	SLIDER_THUMB_VALUE = (SLIDER_MIN_VALUE + SLIDER_MAX_VALUE) / 2.0f

static final String	DEFAULT_VALUE_TEXT_TO_SPEECH_COUNTRY = ""

static final String	DEFAULT_VALUE_TEXT_TO_SPEECH_LANGUAGE = ""

Protected Member Functions inherited from com.google.appinventor.components.runtime.AndroidNonvisibleComponent
	AndroidNonvisibleComponent (Form form)

Protected Attributes inherited from com.google.appinventor.components.runtime.AndroidNonvisibleComponent
final Form	form

Detailed Description

The TextToSpeech component speaks a given text aloud. You can set the pitch and the rate of speech.

You can also set a language by supplying a language code. This changes the pronunciation of words, not the actual language spoken. For example, setting the Language() to French and speaking English text will sound like someone speaking English (en) with a French accent.

You can also specify a country by supplying a Country() code. This can affect the pronunciation. For example, British English (GBR) will sound different from US English (USA). Not every country code will affect every language.

The languages and countries available depend on the particular device, and can be listed with the AvailableLanguages() and AvailableCountries() properties.

Author: markf.nosp@m.@goo.nosp@m.gle.c.nosp@m.om (Mark Friedman)

Definition at line 71 of file TextToSpeech.java.

Constructor & Destructor Documentation

◆ TextToSpeech()

com.google.appinventor.components.runtime.TextToSpeech.TextToSpeech ( ComponentContainer container )

Creates a TextToSpeech component.

Parameters

container container, component will be placed in

Definition at line 132 of file TextToSpeech.java.

Member Function Documentation

◆ AfterSpeaking()

void com.google.appinventor.components.runtime.TextToSpeech.AfterSpeaking ( boolean result )

Event to raise after the message is spoken. The result{:.variable.block} will be true{:.logic.block} if the message is spoken successfully, otherwise it will be false{:.logic.block}.

Parameters

result whether the message was successfully spoken

Definition at line 462 of file TextToSpeech.java.

◆ AvailableCountries()

YailList com.google.appinventor.components.runtime.TextToSpeech.AvailableCountries ( )

Definition at line 376 of file TextToSpeech.java.

◆ AvailableLanguages()

YailList com.google.appinventor.components.runtime.TextToSpeech.AvailableLanguages ( )

Definition at line 368 of file TextToSpeech.java.

◆ BeforeSpeaking()

void com.google.appinventor.components.runtime.TextToSpeech.BeforeSpeaking ( )

Event to raise when Speak is invoked, before the message is spoken.

Definition at line 449 of file TextToSpeech.java.

◆ Country() [1/2]

String com.google.appinventor.components.runtime.TextToSpeech.Country ( )

Gets the country for this TextToSpeech component. This will be either an ISO2 (i.e. 2 letter) or ISO3 (i.e. 3 letter) code depending on which kind of code the property was set with.

@suppressdoc

Returns: country code for this TextToSpeech component.

Definition at line 361 of file TextToSpeech.java.

◆ Country() [2/2]

void com.google.appinventor.components.runtime.TextToSpeech.Country ( String country )

Country code to use for speech generation. This can affect the pronunciation. For example, British English (GBR) will sound different from US English (USA). Not every country code will affect every language.

Parameters

country is the ISO2 (i.e. 2 letter) or ISO3 (i.e. 3 letter) country code to set this TextToSpeech component to.

Definition at line 325 of file TextToSpeech.java.

◆ Language() [1/2]

String com.google.appinventor.components.runtime.TextToSpeech.Language ( )

Gets the language for this TextToSpeech component. This will be either an ISO2 (i.e. 2 letter) or ISO3 (i.e. 3 letter) code depending on which kind of code the property was set with.

@suppressdoc

Returns: the language code for this TextToSpeech component.

Definition at line 307 of file TextToSpeech.java.

◆ Language() [2/2]

void com.google.appinventor.components.runtime.TextToSpeech.Language ( String language )

Sets the language for TextToSpeech. This changes the way that words are pronounced, not the actual language that is spoken. For example, setting the language to French and speaking English text will sound like someone speaking English with a French accent.

Parameters

language is the ISO2 (i.e. 2 letter) or ISO3 (i.e. 3 letter) language code to set this TextToSpeech component to.

Definition at line 194 of file TextToSpeech.java.

◆ onDestroy()

void com.google.appinventor.components.runtime.TextToSpeech.onDestroy ( )

Implements com.google.appinventor.components.runtime.OnDestroyListener.

Definition at line 478 of file TextToSpeech.java.

◆ onResume()

void com.google.appinventor.components.runtime.TextToSpeech.onResume ( )

Implements com.google.appinventor.components.runtime.OnResumeListener.

Definition at line 473 of file TextToSpeech.java.

◆ onStop()

void com.google.appinventor.components.runtime.TextToSpeech.onStop ( )

Implements com.google.appinventor.components.runtime.OnStopListener.

Definition at line 467 of file TextToSpeech.java.

◆ Pitch() [1/2]

float com.google.appinventor.components.runtime.TextToSpeech.Pitch ( )

Reports the current value of speech pitch. @suppressdoc

Definition at line 256 of file TextToSpeech.java.

◆ Pitch() [2/2]

void com.google.appinventor.components.runtime.TextToSpeech.Pitch ( float pitch )

Sets the speech pitch for the TextToSpeech.

The values should be between 0 and 2 where lower values lower the tone of synthesized voice and greater values raise it.

The default value is 1.0 for normal pitch.

Parameters

pitch a pitch level between 0 and 2

Definition at line 237 of file TextToSpeech.java.

◆ prepareLanguageAndCountryProperties()

void com.google.appinventor.components.runtime.TextToSpeech.prepareLanguageAndCountryProperties ( )

Definition at line 381 of file TextToSpeech.java.

◆ Result()

boolean com.google.appinventor.components.runtime.TextToSpeech.Result ( )

Returns true{:.logic.block} if the text was successfully converted to speech, otherwise false{:.logic.block}.

Definition at line 176 of file TextToSpeech.java.

◆ Speak()

void com.google.appinventor.components.runtime.TextToSpeech.Speak ( final String message )

Speaks the given message.

Definition at line 438 of file TextToSpeech.java.

◆ SpeechRate() [1/2]

float com.google.appinventor.components.runtime.TextToSpeech.SpeechRate ( )

Reports the current value of speechRate. @suppressdoc

Definition at line 295 of file TextToSpeech.java.

◆ SpeechRate() [2/2]

void com.google.appinventor.components.runtime.TextToSpeech.SpeechRate ( float speechRate )

Sets the SpeechRate for TextToSpeech.

The values should be between 0 and 2 where lower values slow down the pitch and greater values accelerate it.

The default value is 1.0 for normal speech rate.

Parameters

speechRate Speech rate 1.0 is the normal speech rate, lower values slow down the speech (0.5 is half the normal speech rate), greater values accelerate it (2.0 is twice the normal speech rate).

Definition at line 276 of file TextToSpeech.java.

The documentation for this class was generated from the following file:

C:/Users/Ulli/appinventor-sources/appinventor/components/src/com/google/appinventor/components/runtime/TextToSpeech.java
