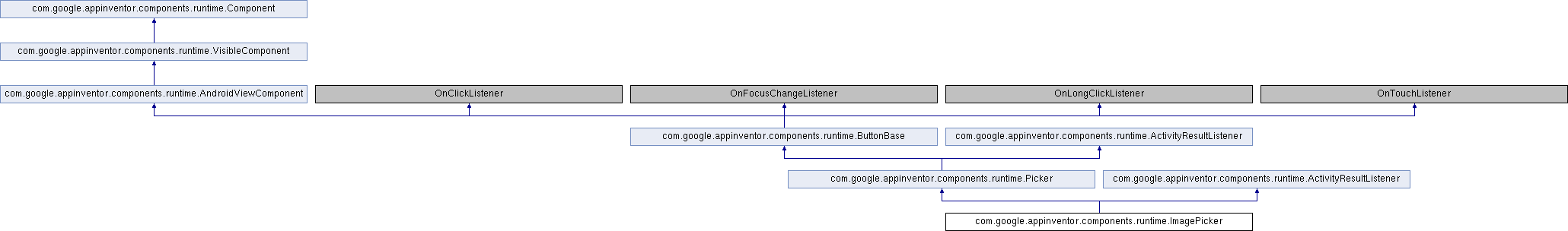

Inheritance diagram for com.google.appinventor.components.runtime.ImagePicker:

Public Member Functions
	ImagePicker (ComponentContainer container)

String	Selection ()

void	click ()

void	resultReturned (int requestCode, int resultCode, Intent data)

Public Member Functions inherited from com.google.appinventor.components.runtime.Picker
	Picker (ComponentContainer container)

void	Open ()

void	BeforePicking ()

void	AfterPicking ()

Public Member Functions inherited from com.google.appinventor.components.runtime.ButtonBase
	ButtonBase (ComponentContainer container)

boolean	onTouch (View view, MotionEvent me)

View	getView ()

void	TouchDown ()

void	TouchUp ()

void	GotFocus ()

void	LostFocus ()

int	TextAlignment ()

void	TextAlignment (int alignment)

int	Shape ()

void	Shape (int shape)

String	Image ()

void	Image (String path)

int	BackgroundColor ()

void	BackgroundColor (int argb)

boolean	Enabled ()

void	Enabled (boolean enabled)

boolean	FontBold ()

void	FontBold (boolean bold)

void	ShowFeedback (boolean showFeedback)

boolean	ShowFeedback ()

boolean	FontItalic ()

void	FontItalic (boolean italic)

float	FontSize ()

void	FontSize (float size)

int	FontTypeface ()

void	FontTypeface (int typeface)

String	Text ()

void	Text (String text)

int	TextColor ()

void	TextColor (int argb)

boolean	longClick ()

void	onClick (View view)

void	onFocusChange (View previouslyFocused, boolean gainFocus)

boolean	onLongClick (View view)

Public Member Functions inherited from com.google.appinventor.components.runtime.AndroidViewComponent
boolean	Visible ()

void	Visible (boolean visibility)

int	Width ()

void	Width (int width)

void	WidthPercent (int pCent)

void	setLastWidth (int width)

int	getSetWidth ()

void	setLastHeight (int height)

int	getSetHeight ()

void	CopyWidth (AndroidViewComponent sourceComponent)

int	Height ()

void	Height (int height)

void	HeightPercent (int pCent)

void	CopyHeight (AndroidViewComponent sourceComponent)

int	Column ()

void	Column (int column)

int	Row ()

void	Row (int row)

HandlesEventDispatching	getDispatchDelegate ()

Protected Member Functions
Intent	getIntent ()

Protected Member Functions inherited from com.google.appinventor.components.runtime.AndroidViewComponent
	AndroidViewComponent (ComponentContainer container)

Protected Member Functions inherited from com.google.appinventor.components.runtime.VisibleComponent
	VisibleComponent ()

Additional Inherited Members
Static Public Attributes inherited from com.google.appinventor.components.runtime.Component
static final String	ASSET_DIRECTORY = "component"

static final int	ALIGNMENT_NORMAL = 0

static final int	ALIGNMENT_CENTER = 1

static final int	ALIGNMENT_OPPOSITE = 2

static final int	ACCELEROMETER_SENSITIVITY_WEAK = 1

static final int	ACCELEROMETER_SENSITIVITY_MODERATE = 2

static final int	ACCELEROMETER_SENSITIVITY_STRONG = 3

static final int	BUTTON_SHAPE_DEFAULT = 0

static final int	BUTTON_SHAPE_ROUNDED = 1

static final int	BUTTON_SHAPE_RECT = 2

static final int	BUTTON_SHAPE_OVAL = 3

static final int	COLOR_NONE = 0x00FFFFFF

static final int	COLOR_BLACK = 0xFF000000

static final int	COLOR_BLUE = 0xFF0000FF

static final int	COLOR_CYAN = 0xFF00FFFF

static final int	COLOR_DKGRAY = 0xFF444444

static final int	COLOR_GRAY = 0xFF888888

static final int	COLOR_GREEN = 0xFF00FF00

static final int	COLOR_LTGRAY = 0xFFCCCCCC

static final int	COLOR_MAGENTA = 0xFFFF00FF

static final int	COLOR_ORANGE = 0xFFFFC800

static final int	COLOR_PINK = 0xFFFFAFAF

static final int	COLOR_RED = 0xFFFF0000

static final int	COLOR_WHITE = 0xFFFFFFFF

static final int	COLOR_YELLOW = 0xFFFFFF00

static final int	COLOR_DEFAULT = 0x00000000

static final String	DEFAULT_VALUE_COLOR_NONE = "&H00FFFFFF"

static final String	DEFAULT_VALUE_COLOR_BLACK = "&HFF000000"

static final String	DEFAULT_VALUE_COLOR_BLUE = "&HFF0000FF"

static final String	DEFAULT_VALUE_COLOR_CYAN = "&HFF00FFFF"

static final String	DEFAULT_VALUE_COLOR_DKGRAY = "&HFF444444"

static final String	DEFAULT_VALUE_COLOR_GRAY = "&HFF888888"

static final String	DEFAULT_VALUE_COLOR_GREEN = "&HFF00FF00"

static final String	DEFAULT_VALUE_COLOR_LTGRAY = "&HFFCCCCCC"

static final String	DEFAULT_VALUE_COLOR_MAGENTA = "&HFFFF00FF"

static final String	DEFAULT_VALUE_COLOR_ORANGE = "&HFFFFC800"

static final String	DEFAULT_VALUE_COLOR_PINK = "&HFFFFAFAF"

static final String	DEFAULT_VALUE_COLOR_RED = "&HFFFF0000"

static final String	DEFAULT_VALUE_COLOR_WHITE = "&HFFFFFFFF"

static final String	DEFAULT_VALUE_COLOR_YELLOW = "&HFFFFFF00"

static final String	DEFAULT_VALUE_COLOR_DEFAULT = "&H00000000"

static final float	FONT_DEFAULT_SIZE = 14

static final int	LAYOUT_ORIENTATION_HORIZONTAL = ComponentConstants.LAYOUT_ORIENTATION_HORIZONTAL

static final int	LAYOUT_ORIENTATION_VERTICAL = ComponentConstants.LAYOUT_ORIENTATION_VERTICAL

static final int	SCALING_SCALE_PROPORTIONALLY = 0

static final int	SCALING_SCALE_TO_FIT = 1

static final int	TYPEFACE_DEFAULT = 0

static final int	TYPEFACE_SANSSERIF = 1

static final int	TYPEFACE_SERIF = 2

static final int	TYPEFACE_MONOSPACE = 3

static final int	LENGTH_PREFERRED = -1

static final int	LENGTH_FILL_PARENT = -2

static final int	LENGTH_UNKNOWN = -3

static final int	LENGTH_PERCENT_TAG = -1000

static final int	TOAST_LENGTH_SHORT = 0

static final int	TOAST_LENGTH_LONG = 1

static final int	DIRECTION_NORTH = 1

static final int	DIRECTION_NORTHEAST = 2

static final int	DIRECTION_EAST = 3

static final int	DIRECTION_SOUTHEAST = 4

static final int	DIRECTION_SOUTH = -1

static final int	DIRECTION_SOUTHWEST = -2

static final int	DIRECTION_WEST = -3

static final int	DIRECTION_NORTHWEST = -4

static final int	DIRECTION_NONE = 0

static final int	DIRECTION_MIN = -4

static final int	DIRECTION_MAX = 4

static float	SLIDER_MIN_VALUE = 10

static float	SLIDER_MAX_VALUE = 50

static float	SLIDER_THUMB_VALUE = (SLIDER_MIN_VALUE + SLIDER_MAX_VALUE) / 2.0f

static final String	DEFAULT_VALUE_TEXT_TO_SPEECH_COUNTRY = ""

static final String	DEFAULT_VALUE_TEXT_TO_SPEECH_LANGUAGE = ""

Protected Attributes inherited from com.google.appinventor.components.runtime.Picker
final ComponentContainer	container

int	requestCode

Protected Attributes inherited from com.google.appinventor.components.runtime.AndroidViewComponent
final ComponentContainer	container

Detailed Description

A special-purpose button. When the user taps an ImagePicker, the device's image gallery appears, and the user can choose an image. After an image is picked, it is saved, and the Selection() property will be the name of the file where the image is stored. In order to not fill up storage, a maximum of 10 images will be stored. Picking more images will delete previous images, in order from oldest to newest.

Author: halab.nosp@m.elso.nosp@m.n@goo.nosp@m.gle..nosp@m.com (Hal Abelson)

Definition at line 55 of file ImagePicker.java.

Constructor & Destructor Documentation

◆ ImagePicker()

com.google.appinventor.components.runtime.ImagePicker.ImagePicker ( ComponentContainer container )

Create a new ImagePicker component.

Parameters

container the parent container.

Definition at line 82 of file ImagePicker.java.

Member Function Documentation

◆ click()

void com.google.appinventor.components.runtime.ImagePicker.click ( )

Reimplemented from com.google.appinventor.components.runtime.Picker.

Definition at line 101 of file ImagePicker.java.

◆ getIntent()

Intent com.google.appinventor.components.runtime.ImagePicker.getIntent ( )

protected

Provides the Intent used to launch the picker activity.

Reimplemented from com.google.appinventor.components.runtime.Picker.

Definition at line 96 of file ImagePicker.java.

◆ resultReturned()

void com.google.appinventor.components.runtime.ImagePicker.resultReturned	(	int	requestCode,
		int	resultCode,
		Intent	data
	)

Callback method to get the result returned by the image picker activity

Parameters

requestCode	a code identifying the request.
resultCode	a code specifying success or failure of the activity
data	the returned data, in this case an Intent whose data field contains the image's content URI.

Implements com.google.appinventor.components.runtime.ActivityResultListener.

Definition at line 129 of file ImagePicker.java.

◆ Selection()

String com.google.appinventor.components.runtime.ImagePicker.Selection ( )

Path to the file containing the image that was selected.

Definition at line 91 of file ImagePicker.java.

The documentation for this class was generated from the following file:

C:/Users/Ulli/appinventor-sources/appinventor/components/src/com/google/appinventor/components/runtime/ImagePicker.java
